CB2.9 Utility Compactor

Overview

The CB2.9 is a 2.9 to 3 metric ton compactor with 1300 mm (51 in) drums. It’s a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Download Product Brochure Print

Simple to Operate

Simple to Operate • Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing

Proven Productivity

Proven Productivity • Large 720 mm (28 in) drum diameters for smooth mat finish
• 14 mm (0.55 in) thick drum shells for longer durability
• Dual vibratory frequencies and ballast options to maximize compactive effort
• C1.7T engine with 36 kW (48.2 hp) (gross)

Technology Ready

Technology Ready • Product link for remote monitoring of machine location and status
• Optional Compaction Measurement Value (CMV) displayed to the operator for improved compaction performance and consistency

Superior Safety

Superior Safety • High visability 75 mm (3 in) orange seatbelt to make job site safety visible
• Seat with operator presence sensor to prevent unintended operation while out of the seat
• Slip resistant steps and platform for improved operator safety
• Optional rotating amber beacon

Easy to Service

Easy to Service • Cat controls with ET capability for easy troubleshooting
• Reduced maintenance tasks for quick servicing
• 500 hour oil change interval to reduce maintenance time and costs
• Uptime kits and customer value agreements available to ensure maximum uptime
• LED lighting f...

Simple to Operate

Proven Productivity

Technology Ready

Superior Safety

Easy to Service

Weights

Standard Operating Weight with ROPS: 6415lb
Operating Weight: 5533lb
Maximum Operating Weight with ROPS: 6415lb
Maximum Operating Weight with Cab: 6415lb
Maximum Weight at Front Drum: 3060lb
Maximum Weight at Rear Drum: 3355lb
Maximum Operating Weight: 7515lb
Operating Weight - At Front Drum with ROPS/FOPS: 3060lb
Operating Weight - At Rear Drum with ROPS/FOPS: 3355lb
Static Linear Load: 59.8lb/in

Operating Specifications

Travel Speed - Maximum: 7.5mile/h
Standard Compaction Width: 51.2in
Static Linear Load: 59.8lb/in
Curb Clearance: 17.8in
Turning Radius - Inside Drum Edge: 98in
Turning Radius - Outside Drum Edge: 149.2in
Drum Offset: 2in
Ground Clearance: 11.2in
Static Linear Load - With Cab: 65.6lb/in
Speed Range: 12 km/hr 7.5 mph

Dimensions

Compaction Width: 51.2in
Overall Length: 99.2kg/cm
Overall Width: 55.6in
Wheel Base: 70.9in
Height - ROPS: 70.8in
Drum Diameter: 28.3in
Drum Width: 51.2in

Engine

Net Power - ISO 9249: 47.6hp
Gross Power: 48.2hp
Engine Model: C1.7T

Vibratory System

Nominal Amplitude - High: 0.02in
Centrifugal Force - Maximum: 8109lb/ft
Frequency: 64/53 Hz (3840/3180 vpm)
Frequency: 3840VPM

Service Refill Capacities

Fuel Tank Capacity: 14.37gal (US)
Water Spray Tank Capacity: 52.8gal (US)

Standard/Optional Features

Standard Equipment:

Operator Environment
- Adjustable Suspension Seat with Operator Presense Switch
- ROPS Folding
- Seat Belt - 75 mm (3 in) high visibility orange
- Operator Console w/ Water Tank Gauge, Emergency Stop, and Glove Box
- 12-volt Power Outlet
- Horn, Backup Alarm
Compacton System
- Folding Scrapers
- Vibe Selection - front, rear, or both
- Pressurized, Triple-Filtration Spray System with Test Mode
Powertrain
- Auto Engine Off and Auto Warmup
- Air Cleaner, Dual Element
- Engine Belt Guard
Technology
- Telematics
Electrical
- LED Working Lights
Other
- Vandal Protection - lockable hood, fuel fill, and controls cover
- Machine Life and Tiedowns
- Offsets Hitch

Optional Equipment:

Operator Environment
- ROPS Fixed
- Sun Canopy
- Seat - Side Shift
- Dual Propel Levers
Compacton System
- Fixed Scrapers
- Cocoa Mats
- Edge Cutter Ready
- Water Sprayer Antifreeze Kit
- Ballast Kit - 200 kg (440 lb)
- Ballast Kit - 400 kg (880 lb)
Powertrain
- Traction Control
Technology
- Remote Flash / Troubleshoot
- CMV - Compaction Measurement Value
Electrical
- Battery Disconnect
- LED Roading Lights
- Rotating Amber Beacon
Other
- Biodegradeable Hydraulic Oil
- Bumpers
- Single Point Lift
- Custom Paint

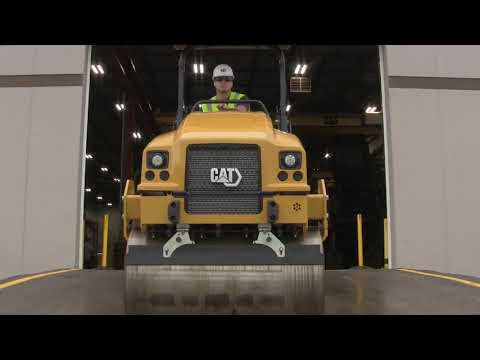

Take The Virtual Product Tour To Explore The Features And Benefits of the CB2.9 Utility Compactor
